Centrifuges-SS

“CENTRIFUGES” as generally known as Hydro Extractors are an important and integral part of industries, Like chemicals,drugs and pharmaceauticals, cosmetics, fertilizers, food products, ceramics and plastics and other allied industries for solid liquid seperation, “GURUNANAK” Centrifuges are manufactured by a company which knows fully well,the importance of Hydro Extractors in the industries.we can design and manufacture Centrifuges as per your special requirement.

“GURUNANAK ENGINEERING WORKS” Manufactureres of the “GURURNANAK” Centrifuges have in the last one e decades , satisfied the customers desire in supplying them the best, they could get in the market.

SPECIAL FEATURE

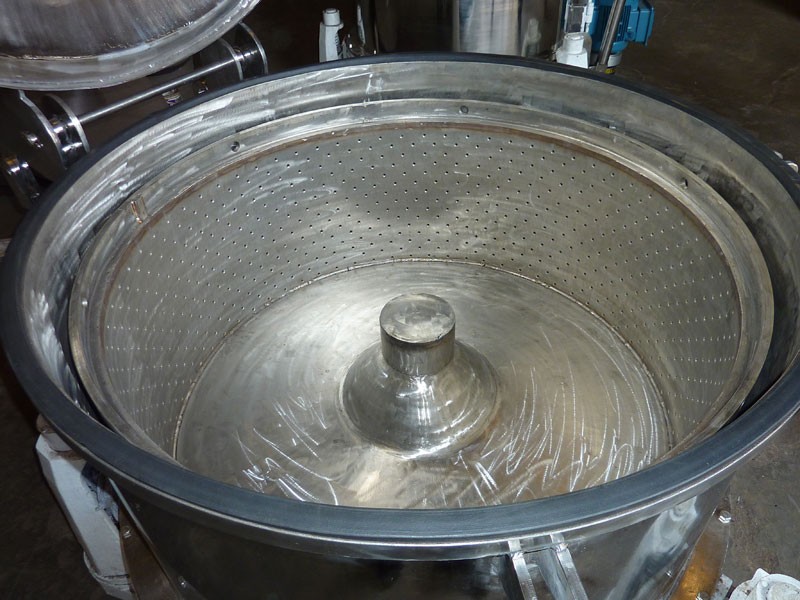

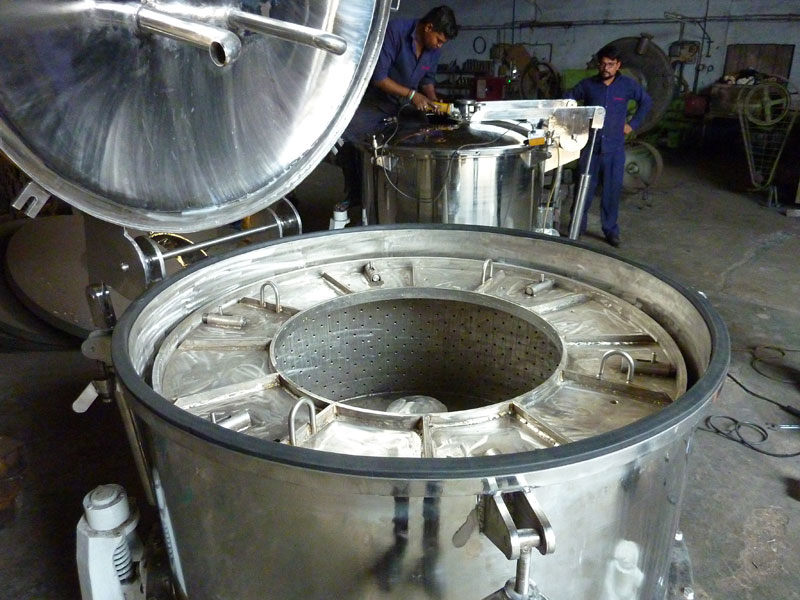

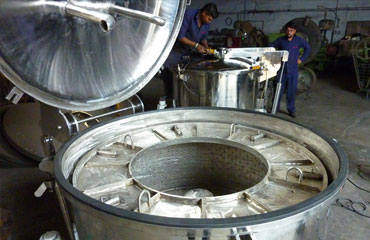

A BASKET Perforted cage of the basket is fabricated from S.S or M.S. sheets, allows free discharge of liquid. While the basket is running at a high speed if is dynamically balanced for vibration free running the basket can be lined by rubber or depending on the requirements by the customers.
B. BODY The outer body is made from M.S. plate with welded , construction with ring and top covers bolted to the body.For feeding discharging th materials, a small provided hinged door and for discharging giving bottom hole for freely flow.

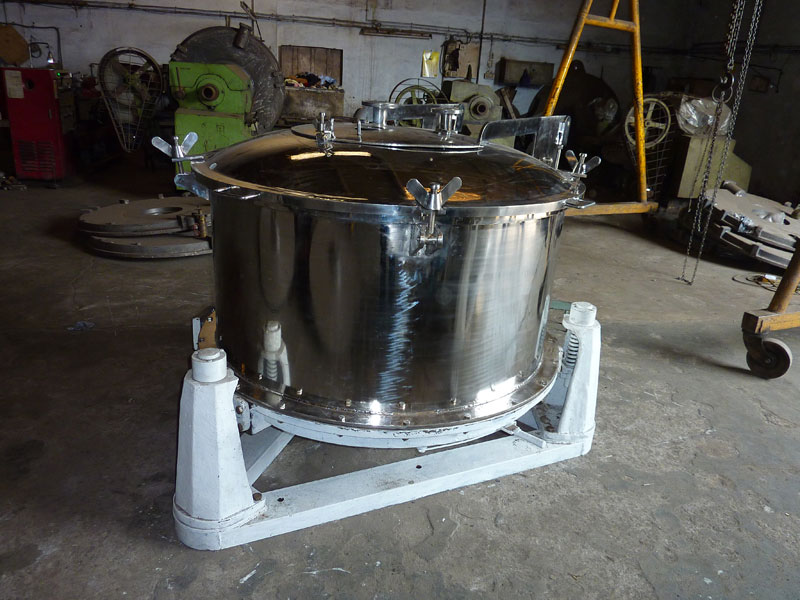

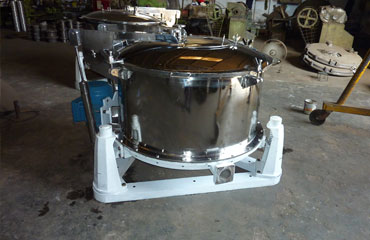

SUSPENSION The machine is suspension on C.I. legs through spring loaded suspension rods to prevent oscillation and vibration. The machines is so designed that the tension over the machine can be adjusted to special requirements.
BEARINGS The bearing fixed in the bearing house and re fitted in the shafting made from EN-8 steel, greasing are provided for lubrication.

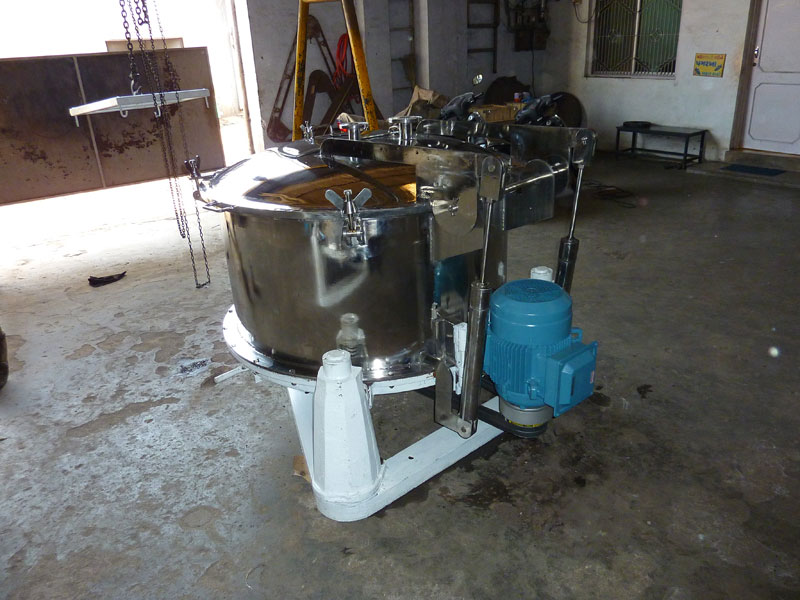

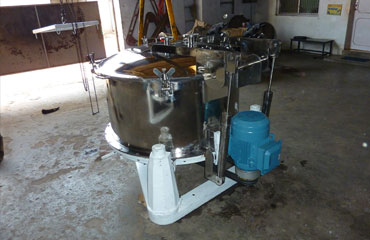

DRIVE 1440 R.P.3 phase -440 volts. Electric motor is provided and the power is transmitted from motor to the basket by means of V-Belts.
BRAKES Mechanical hand brake with nspecial liners.
SAFETY DEVICES The power is cut off by the limit switch (if the customers required)

Type M Basket and outer body complete mild steel
Type MR Basket and body mild steel with rubber lining
Type MS Basket stainless steel and outer body MS.RL.
Type MSS Basket and outer body complete stainless steel

TECHNICAL DATA OF “GURUNANAK” CENTRIFUGES

MODEL 36'' SIZE 48'' SIZE 60'' SIZE
Basket Dia in inches /mm 39” (900mm) 48’' (1200mm) 60’' (1500mm)
Basket height in inches 18”Height 18”Height 24”Height
Under top ring /Cage capacity in kgrams App.) 150 kgrams (Approk) 300 kgrams (Approk) 500 kgrams (Approk)
Maximum Basket revolution 1000 RPM 800RPM 600RPM
H.P.required 10 H.P.
(7.5 H.P.) 15 H.P.
(12.5 H.P) 20 H.P.
Weight kgs. (approxiamate) 1500 kgrams 2000 kgrams 3500 kgrams

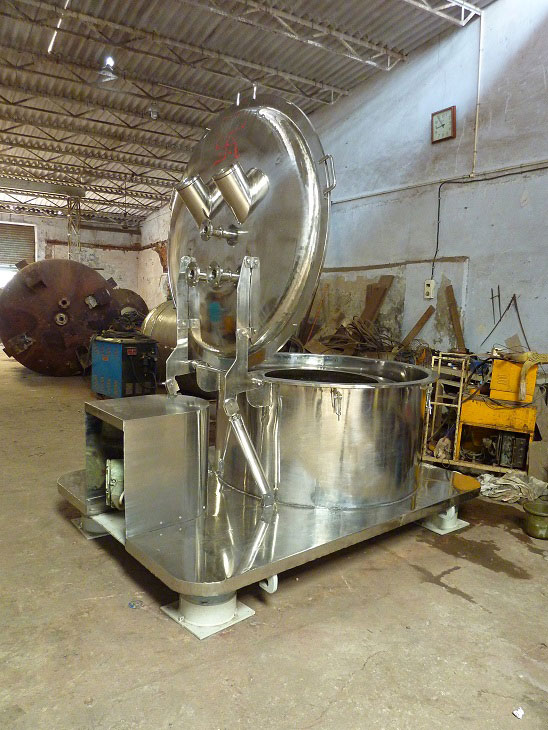

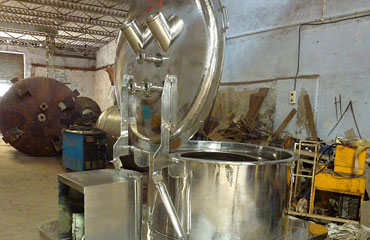

4 POINT SUSPENSION, FULLY OPEN OUTER CASE (Automatic) CGMP - 48 INCH SIZE CENTRIFUGE:

Basket -
1200 MM Diameter, 18 inch height 6 MM thick perforted Sheet fabricated with Basket dish and will run on 800 r. p.m. making – G force of 430 units Basket Capacity : 300 liters by volume.

Outer Case -

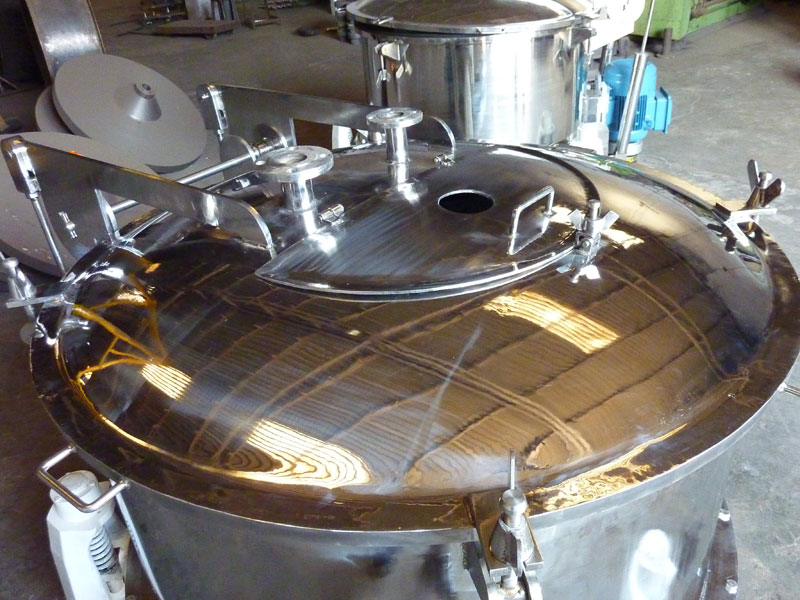

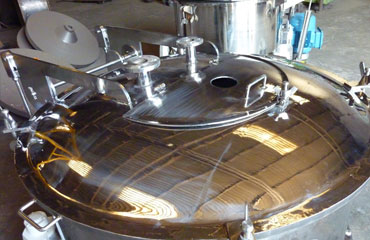

Fuly automatic (powerpack) hydrolically operated with solonides With small cover having facility of two eye glass and spray system.

Suspension -
4 points suspension with 12 inch long solid filled spacer to increase the height of machine for easy operation 4 Anti Vibration suspension.

Main Base -
65 MM Plate for handling inertia force

Electric Motor -
15 H.P. Flame proof electric motor covered with cover fully Automatic operations of motor for increasing speed automatically and applying brakes (VFD) VARIABLE FREQUENCY Drive to control the motor will be supplied by us fitted in a panelbox.

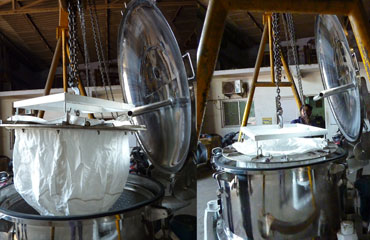

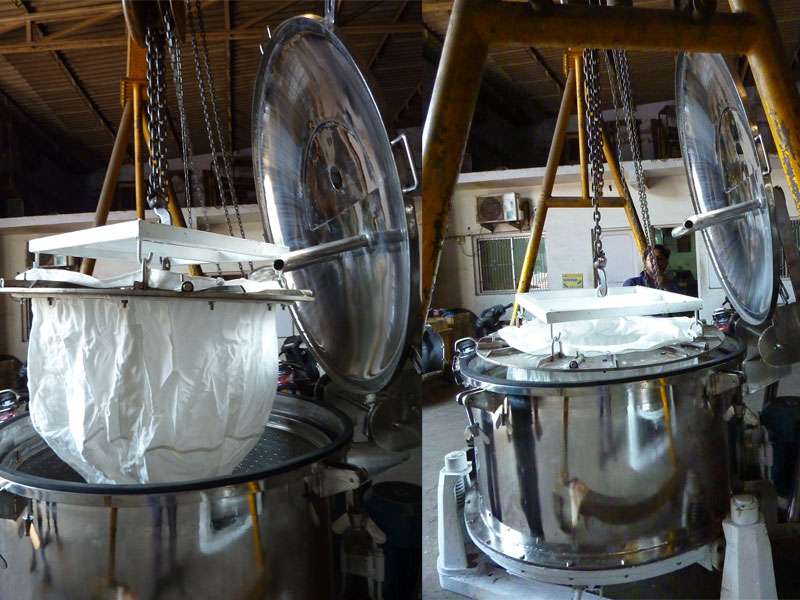

60 INCH SIZE BAG LIFTING TYPE CENTRIFUGE WITH 20 H.P. 1440 R.P.M. ELECTRIC MOTOR AND BAG LIFTING BAG
Main shaft function As per your requirement.
Outer body 6 MM Sheet
Main base 25 MM sheet fabricated.
Basket 8 MM perforted sheet fabricated.
Basket bottom 25 MM Thick sheet fabricated.
Main shaft function Made from EN-8, 100 MM Dia Basket Mounted on main shaft with Bearings and Driven pulley.
Brake Mechanical brake.
Suspension Heavy Duty 3 points pendulum type.
Bearing details Bearing no. N-316 NU – 410 51316
Speed of Basket Basket will run at 600 .P.M.
Material Capacity 500 Kgrms. (Approx.)
